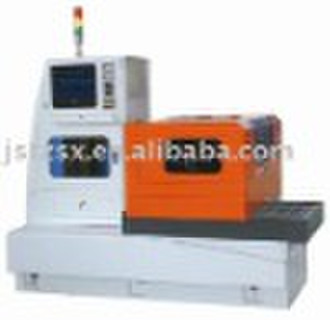

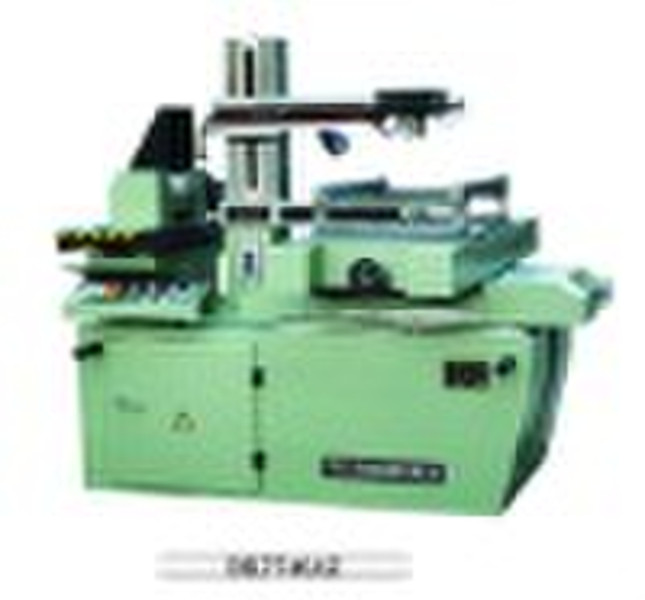

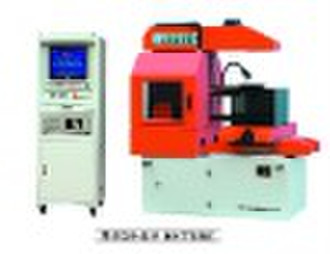

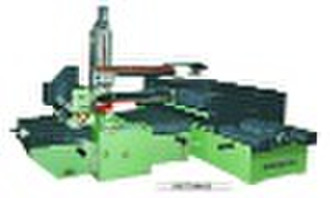

DK77 Series CNC Wire Cutting Machine/Cut EDM.

DK77 Series CNC Wire Cutting Machine/Cut EDM. 1, Main technical data for A series 2, Main technical data for E series - New Patent ProductThe machine is endowed with Wire tightening systen,patent for its wire running system. -Parameter of multi-cutting(parameter of high frequency,wire running speed)once fixed,the machinge can be intelligentlu controlled. -The Processing accuracy:±0.005mm. -The best surface roughness:Ra≤1.1μm. -The max.cutting speed:160mm2/min. -The average speed of tiple cutting is about 80mm2/min(one cut,another two cuts for mortification for raising accuracy and reducing surface roughness of workpiece,surface roughness≤1.5μm). -The system adopts the cartography type automatic programming software,auto CAD graphic file is compatible simultaneously. -The overall electricity controller is a vertical control box integrating in function of programming,control,high frequency,power electric parts.The computer is the professional computer for industrial use with 15liquid crystal screen enabled the machine to b easy for operation. -Worktable a adopted imported linear guide,servo motor driving,level 1. precising ball screw. -This machine applies Non-touch point induction type direction switch.The wire running speed can be adjusted through frequency conversion. -The machine is suitable for processing mold and the components high in precision. MODEL DK7732EA DK7750EA Work table size(mm) 576 x 366 846 x 555 Table Travel (mm) 320 x 400 500 x 630 Max. workpiece thickness (mm) 100 200 Workpiece accuracy ± 0.005 Best surface roughness (mm) ≤ 1.2 Max. cutting speed 160 Overall power (KVA) ≤ 1.6 Cutting Liquid Special fluid for multi-cutting
