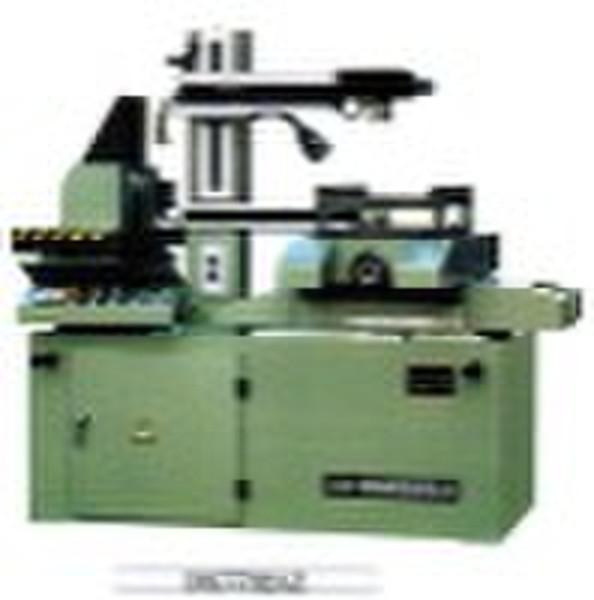

CNC Wire Cutting EDM Machine - DK7780AZ
Niall WONG
Contact person
Basic Information
DK7780AZ CNC wire cutting EDM Main technical data TypeDk7720 AZ DK7725 AZ DK7732 AZ DK7740 AZ DK7750 AZ DK7763 AZ DK7780 AZ DK77100 AZ DK77120 AZ Worktable size(mm) 450×318 520×336 576×366 720×460 846×555 1100×720 1420×910 1420×1090 2500×1400 Table travel(mm) 250×200 320×250 400×320 500×400 630×500 800×630 1200×800 1200×1000 1200×1600 Max.workpiece thickness (mm) 200(200) 400(330) 400(330) 400(330) 500(400) 500(400) 450(350) 450(350) 500 Total weight(kg) 900 1100 1300 1700 2500 4000 5000 5500 6000 Overall dimensions (mm) 1300×900 ×1250 1400×1060 ×1500 1520×1140 ×1500 1680×1390 ×1540 1870×1590 ×1660 2280×1810 ×1780 2500×2500 ×1500 2500×2800 ×1500 3180×2700 ×2030 Wire traveling speed(m/s) 11.5 Wire diameter (mm) Φ0.13-Φ0.18 Max.cutting speed (mm2/min) 100 Taper (°/mm) 6o /100 Power input 3N-50Hz 380V(Monophase 50Hz 220v) Total power (KW) ≤1.2
Delivery terms and packaging
Packaging Detail: Seathorty Packing Delivery Detail: Shipment within 25-35 dayes after getting the deposit
Port: Shanghai
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
